12-Way Colored Anode Top-Post Terminals
About this item

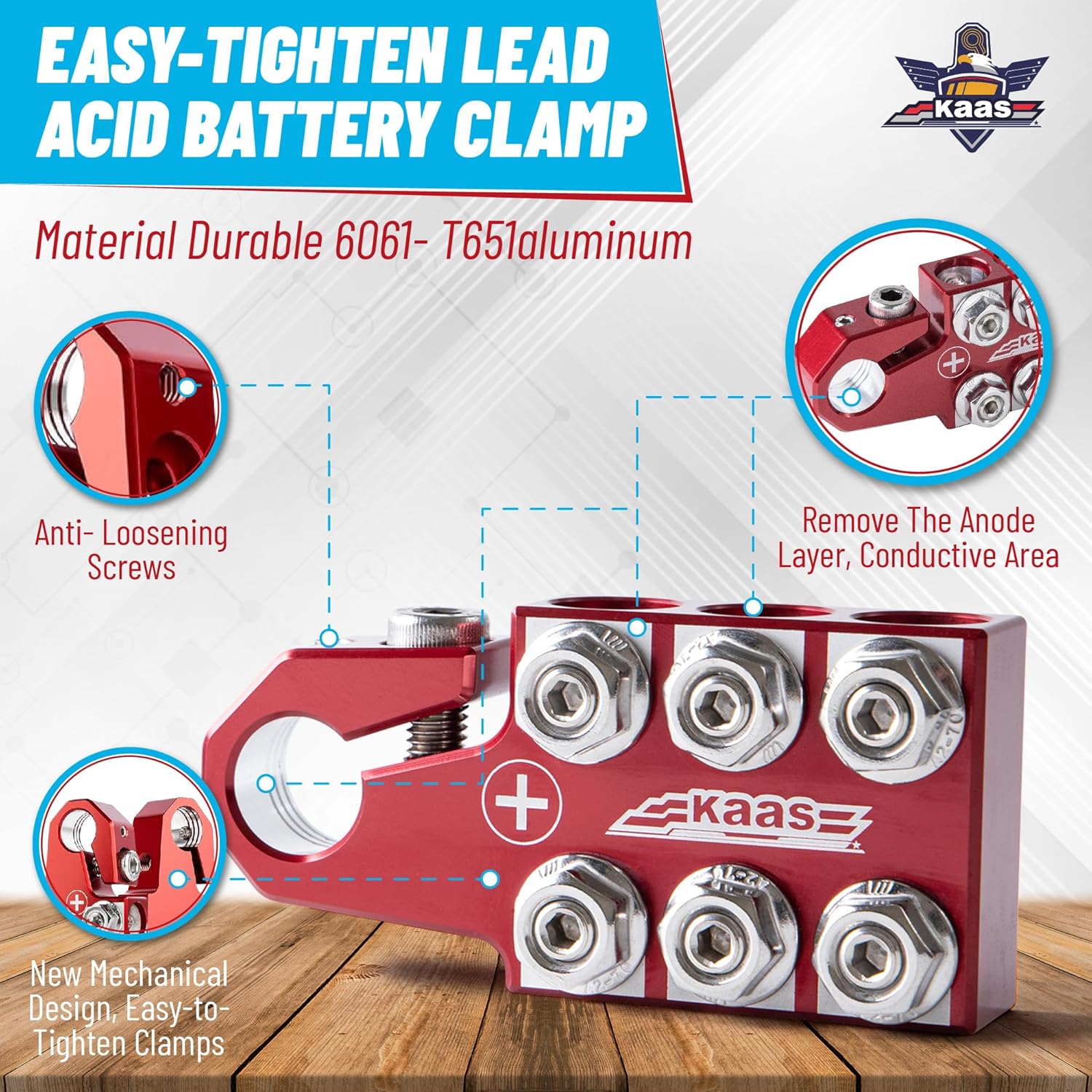

- Easy-to-tighten head design: these terminal clamps feature a user-friendly, easy-to-tighten head, coupled with an anti-loosening screw design, improving upon common issues of terminal clamps being difficult to tighten or prone to detachment.
- Anodic Oxidation Removed to Form Conductive Zone: Crafted from heat-treated 6061-T6 aluminum alloy and precision-engineered through CNC machining. The area where the battery post and power cable connect has the anodic layer removed to establish a conductive zone.
- Battery Terminal Adapter Compatibility: Our 6-hole, 12-Way battery terminals snugly accommodate 00 (2/0) AWG welding cables and other gauges including 1/0, 2, 4, 6, and 8 AWG. Total capacity of up to 12 cables.
- Tailored for Varied Battery Types and Posts: Designed for lead-acid batteries including AGM, GEL, WET, MF, and CA/CA, tailored to fit top post/SAE, DIN, and EN types. Note: JIS pencil post excluded.

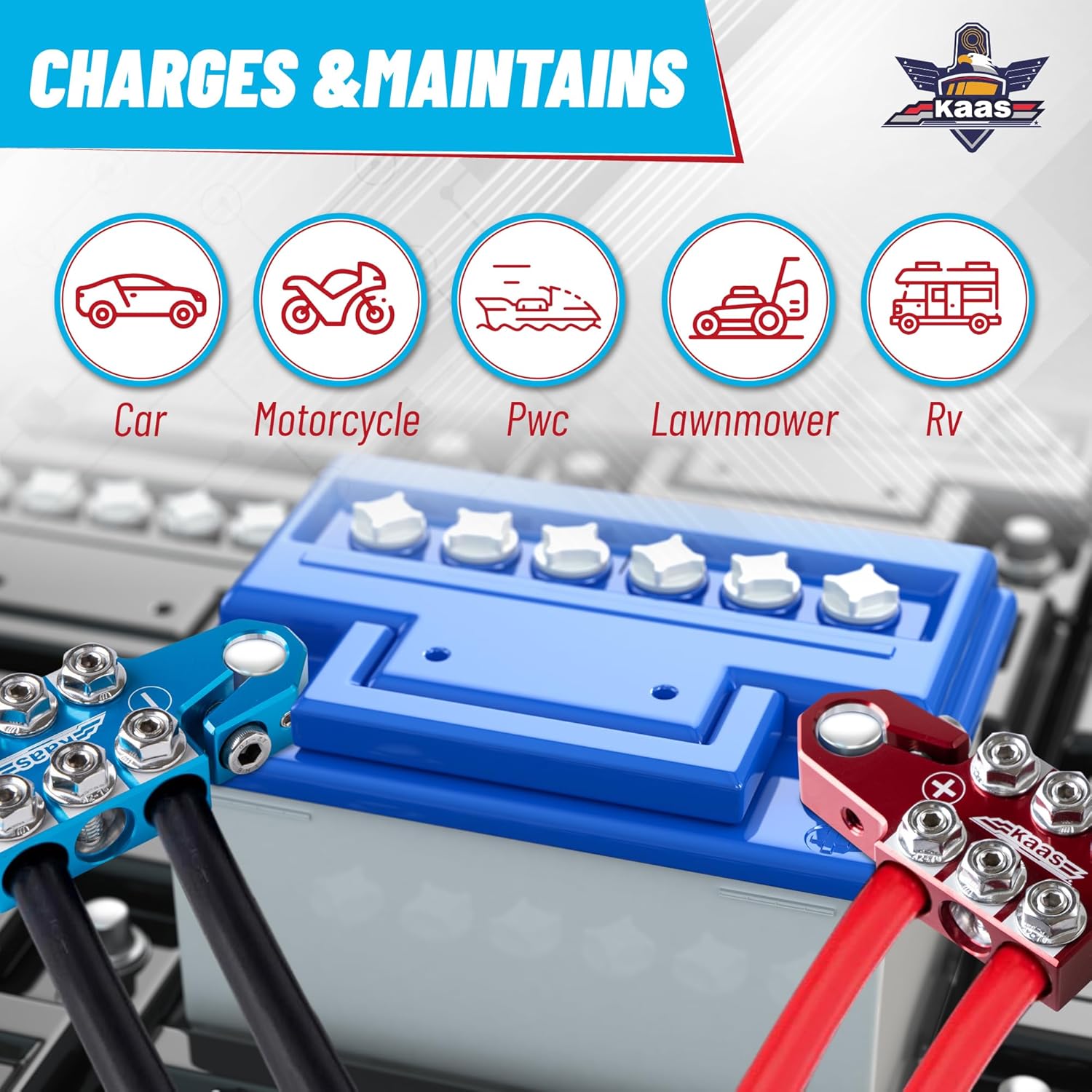

- Broad Applications: Designed to fit a wide variety of vehicles, from cars, pickups, and motorcycles to caravans, RVs, buses, and trucks. (Confirm the tapered post size before use.)
See it in use
Fitment & clearance

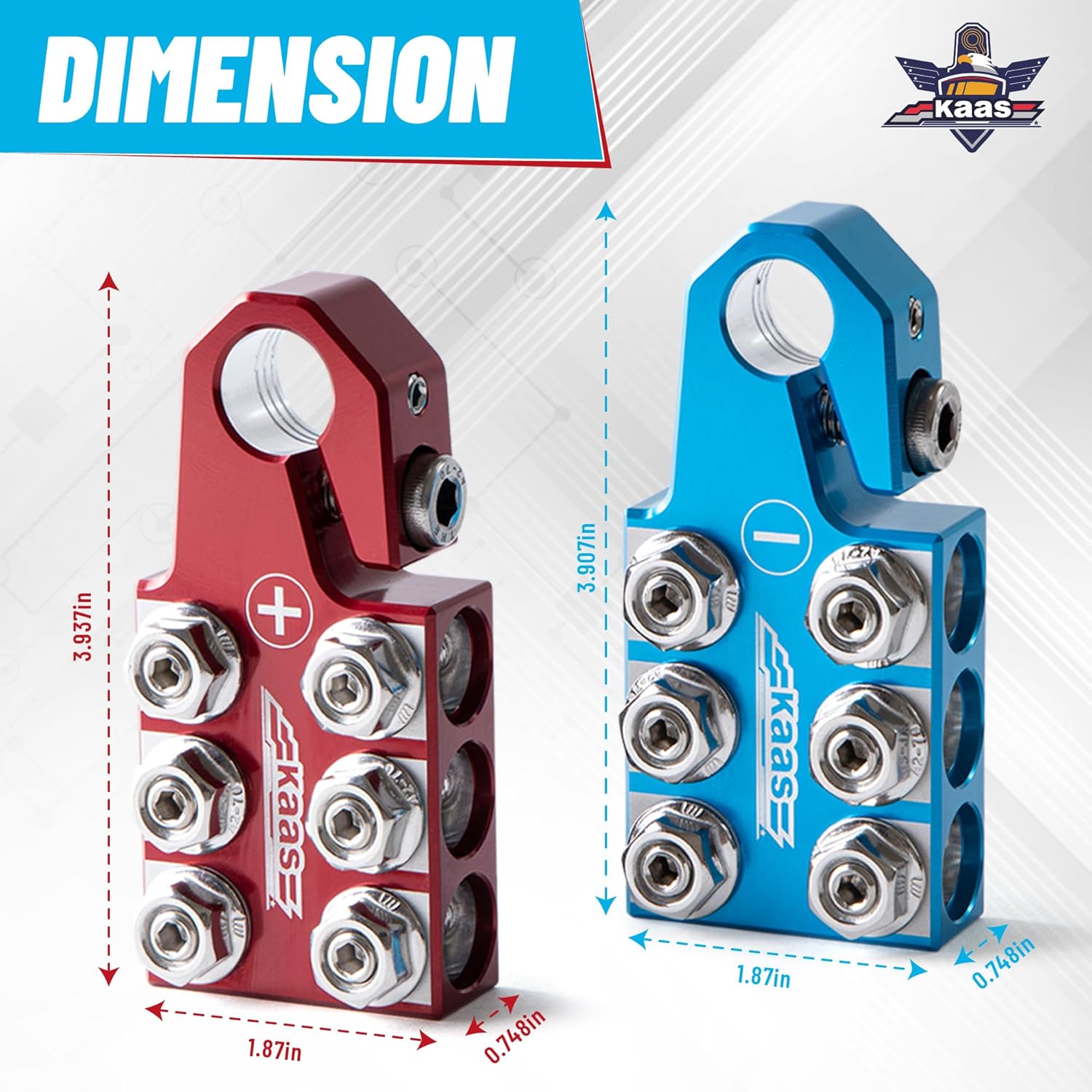

The terminal body measures 3.94 x 1.87 x 0.75 in (length x width x height). It weighs 1.17 lb. That is the size of the part itself. How tall the assembly ends up sitting above your battery depends on how far your post stands proud of the case, which varies between batteries — so measure your vertical gap and your post height, then compare. Full dimension table and the four measurements to take →
Independently tested, not just claimed
Anyone can print "aircraft-grade aluminium" on a listing. We had ours tested by SGS, an independent laboratory, and we publish the report numbers so you can ask for them.
| Series | SGS report | Date | Result |
|---|---|---|---|
| STING | KK-25-09211A | 13 Sep 2025 | A6061-T6 composition verified · 46.0% IACS |
| Eagle | KK-26-04498 | 05 Jun 2026 | 48.0% IACS |
| FLEX | KK-26-04499 | 05 Jun 2026 | 46.7% IACS |
Electrical conductivity tested to ASTM E1004-23; IACS is the standard scale for how well a metal conducts. The aluminium is separately tensile tested to ASTM B557-15 — 52 ksi tensile, 50 ksi yield, against 6061-T6 specification minimums of 38 and 35. Machined and tested in Taiwan. See the numbers and the reports →
Before you install
- Check your post type first (SAE, DIN, EN or JIS)
- Step-by-step installation
- Why terminals come loose — and how to stop it
Coming: Battery Terminal Fitment & Torque Guide
Post identification chart, the four measurements to take in your own engine bay, torque table, and a print-to-scale paper template you can hold against your battery before you order. Body dimensions are already published in the dimension table.
We are still measuring — every dimension in the guide is taken off the actual product rather than a drawing, and we would rather publish it late than publish a number we have not verified. There is no signup form here yet because we have nothing to send you yet. When the guide is ready this box becomes the place to get it.
